Internal Extensions

Internal extensions are extensions that are not .pck files, but actual code (arranged in the same format as you would an extension) in res://src/Extensions/.

The concept of internal extensions was origally targeted towards potentially making pixelorama more modular by grouping some of it's features into smaller extensions, but it can also be used in developing of extensions by users.

We will refer to our extension as "Example"

Comparing the two methods

Internal ExtensionsStandard way (as separate project)
Both ways are easily interchangeableBoth ways are easily interchangeable
During development you don't have to export a pck, every time you need to debug the extensionTo debug you'd have to re-export your extension which is time consuming
Pixelorama's source code is requiredCreating the Extension project is required but Pixelorama's source code is optional
You can extend pixelorama's classes (like BaseTool)You can still extend classes, but Godot's code editor will complain (it's perfectly fine but it's not very pleasing to the eye)

Making an Internal Extension

converting external extension

The process for converting an existing external extension into an internal extension is almost the same as this. Instead of making files (step 3), you copy them over.

  1. Get and unzip the source code of pixelorama that you intend to use for your extension.

  2. Create an Extensions folder (case sensitive) in the pixelorama's source code inside the res://src folder.

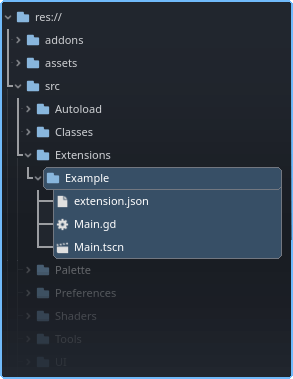

  3. Make the necessary files mentioned in step 2 of this tutorial. Your directory structure will resemble something like this

    Internal Extension File Structure

  4. Navigate to the res://src/Extensions/(extension name)/extension.json file and copy the value of the name key. Then open res://src/HandleExtensions.gd file in pixelorama's source and find the _add_internal_extensions() method. Modify and save it as follows:

    func _add_internal_extensions() -> void:
    _load_extension("Example", true) # Add this line, and replace `Example` with the value of your `name` key.

Now the extension has become internal. From here you can continue to code in the res://src/Extensions/<your extension> folder of pixelorama (just don't create any files in outside your extension folder).

Accessing the API

In an internal extension, prefer using ExtensionsApi autoload directly instead of get_node_or_null("/root/ExtensionsApi")

Exporting an Internal Extension

When you are ready to release/distribute your extension to the public, you may choose one of the following ways.

Converting an Internal Extension into an External one

These steps are basically the reverse of the steps mentioned in the previous section.

  1. Make a new Godot project called "Example" (the project name is irrelevant but for simplicity we'll name it the same as our extension).

  2. Remove/comment the line that was added to res://src/HandleExtensions.gd (In step 5 of Making an Extension, internal). This step is not compulsory but is mentioned anyway for the sake of completeness.

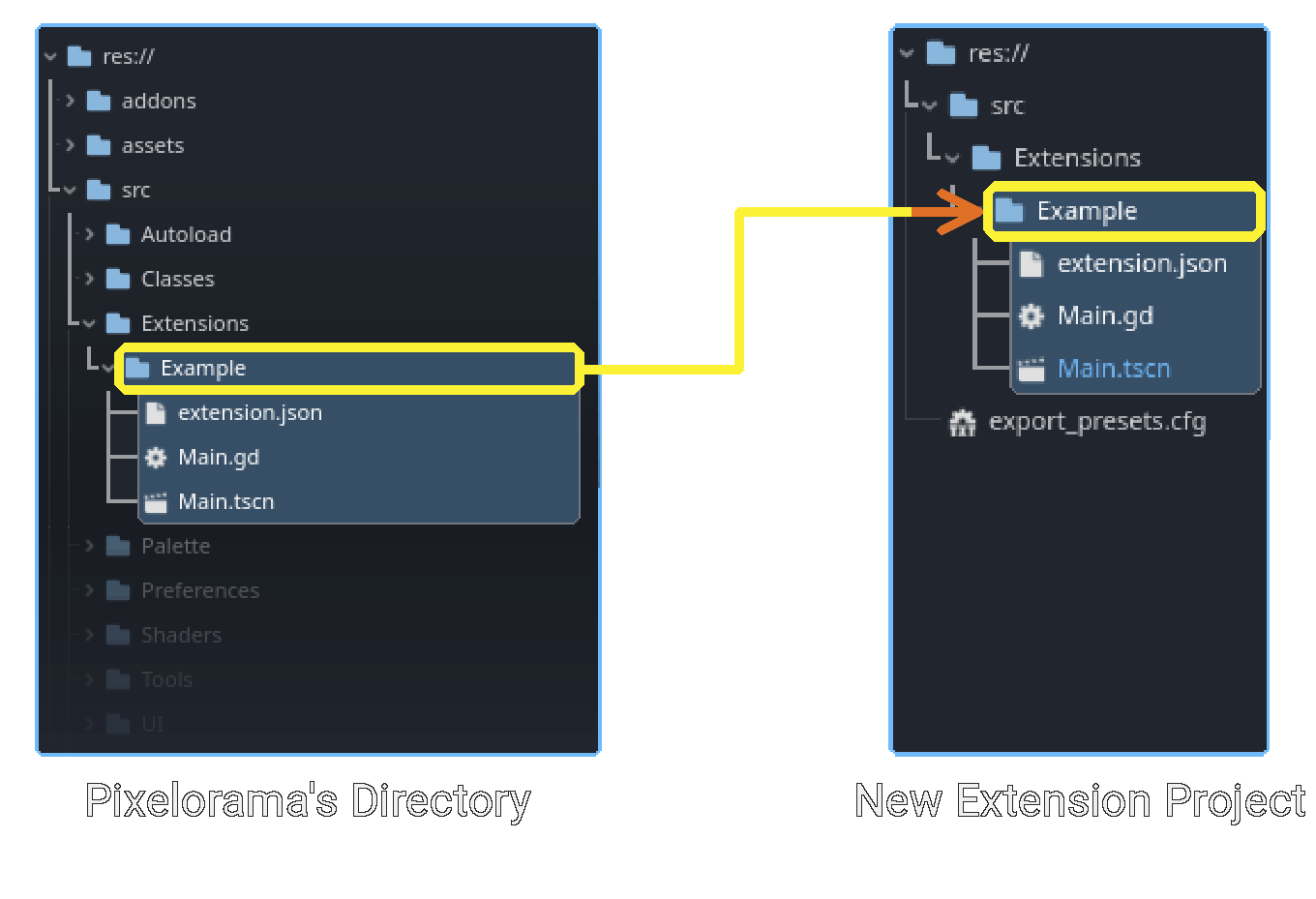

  3. From Pixelorama, move/cut your extension folder from res://src/Extensions/Example, To the res://src/Extensions/Example folder of your project (replacing existing files).

    Internal Extension File Structure

  4. Now you can safely delete pixelorama's source code if you want (or use it for some other extension).

  5. Export your extension, using steps from this tutorial.

Direct export of Internal Extension

Internal extensions can be exported directly instead of first converting it to an external extension.

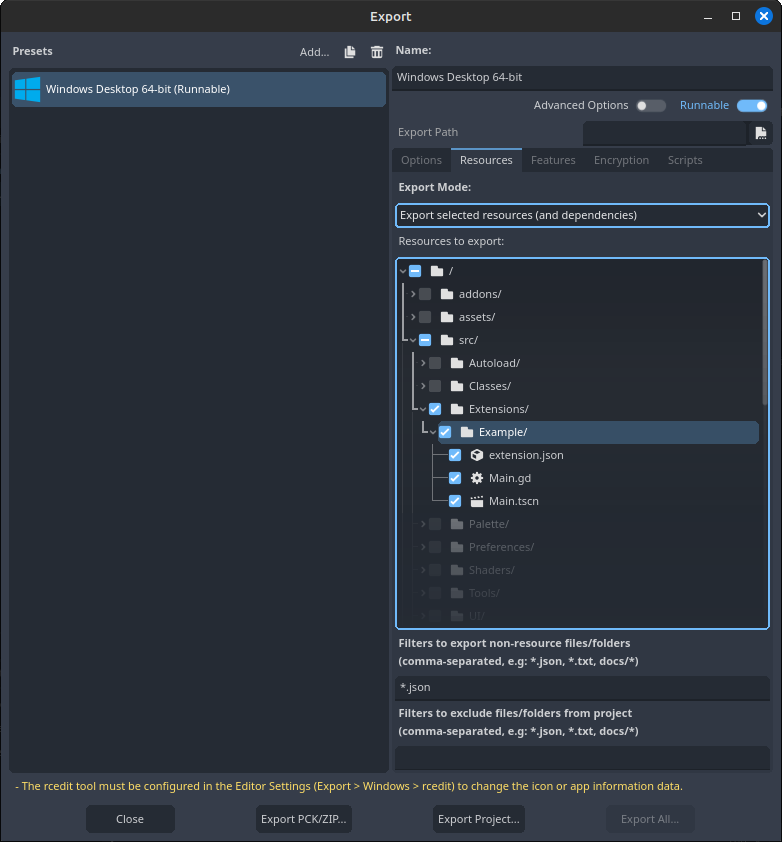

  1. Form the Godot editor, go to Project -> Export....

  2. In the Export dialog, add a new preset (any preset will work) and go to the Resources tab.

  3. Write *.json in 'Filters to export non-resource files/folders'. and in Export Mode, Choose 'Export selected resources (and dependencies)' and select only your extension files as shown below.

    Internal Extension File Structure

  4. Press the Export PCK/ZIP button and export with the same name as your extension.
